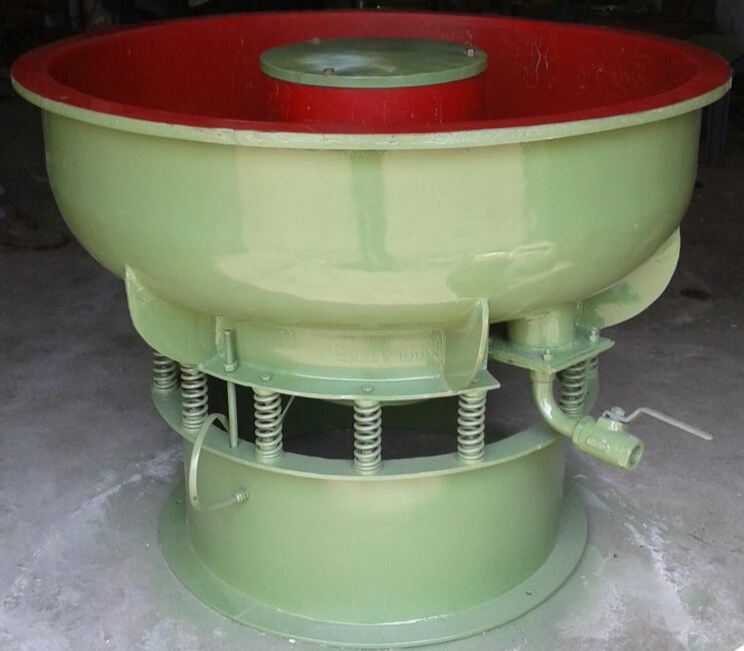

Vibratory Finishing Machine

Vibratory Finishing, also known as mass finishing, is a mechanical/chemical process for the deburring, radiusing, smoothing, polishing and degreasing of individual, mass produced parts.

Mass Finishing processes can be designed as:

· Continuous systems - in which the parts enter at one end and are continually discharged at the exit in the finished state

· Batch systems - in which sets of parts are added, processed, and removed before the next batch is run

· Sequenced process - which involves running the parts through multiple mass finishing processes to produce a finer finish

· Single part systems - in which large parts are processed individually

Vibratory Finishing is used for:

· Deburring - removing the particles and shavings (known as burrs) that appear when metal is machined or worked

· Polishing - producing a smooth, bright, reflective surface finish

· Smoothing - improving the surface finish and blending of any defects or sharp edges

· Super finishing - production of a high-quality smooth surface

· Cleaning - removal of contaminants, debris, grease or dirt from components

· Pre-plate finishing - producing a flat, smooth surface finish prior to subsequent plating or coating;

· Ball burnishing - high-intensity processing, normally within stainless steel balls, to produce a bright lustre finish

· Barrelling or Tumbling - the original process for deburring or polishing components using a rotary drum rather than a vibratory vessel

Benefits Of Vibratory Finishing

· Less wear on your component making them more durable and increasing power output

· Cost effective and non-labour intensive

· A smoother surface makes your component run cooler, faster and longer

· Produces an accurate, controllable and uniform standard of finish.

STANDARD MACHINE
Machine Model	Bowl ID	Bowl OD	U- Section	Motor	PU Thikness
VFS-35 STD	600	680	150	0.5	10-12 MM
VFS- 65 STD	700	780	210	0.5	10-12 MM
VFS-80 STD	800	880	240	1 HP	10-12 MM
VFS-100 STD	870	970	280	2HP	10-12 MM
VFS-150 STD	1050	1150	330	2HP	10--12 MM
VFS-200 STD	1100	1200	360	3 HP	10--12 MM
VFS-300 STD	1200	1300	390	3 HP	10--12 MM
VFS-400 STD	1300	1400	420	5 HP	10--15MM
VFS-600 STD	1500	1600	450	7 HP	10--15MM

SEPARATION MODEL MACHINES
Machine Model	Bowel ID	Bowl OD	U- Section	Motor	PU Thikness
VFS-35 S	600	680	150	0.5	10-12MM
VFS- 65 S	700	780	210	0.5	10-12MM
VFS-80 S	800	880	240	1 HP	10-12MM
VFS-100 S	870	970	280	2HP	10-12MM
VFS-150 S	1050	1150	330	2HP	10--12MM
VFS-200 S	1100	1200	360	3 HP	10--12MM
VFS-300 S	1200	1300	390	3 HP	10--12MM
VFS-400 S	1300	1400	420	5 HP	10--15MM
VFS-600 S	1500	1600	450	7 HP	10--15MM
VFS-800 S	1700	1800	500	7.5 HP	10--15MM
